Grade 4 – Session 3: “Sound Waves—Visualizing Vibrations”
Architect: Aleeza Ayaz - Markhor3D
Session Length: 50-60 minutes
Session Overview:
In this session, students will explore the science of sound waves by observing vibrations in action. They’ll start by feeling their own vocal cords vibrate and then observe how a woofer visibly moves to produce sound. Through hands-on experimentation with a tensioned string, students will learn how tension affects sound pitch, frequency, and intensity. Using MeasureLab’s live plot, they will visualize sound waves in real time and develop an intuitive understanding of pitch and frequency. This session combines observation, prediction, and experimentation, giving students foundational insights into how sound is created and how different factors influence its qualities.
Equipment Required:
- MeasureLab with built-in sound sensor
- Woofer/Speaker
- Vibrating object (e.g., String tied at two ends, rubber band, drum etc.)
- Worksheet for students to record observations, predictions, and results
- Pens, pencils, markers, etc.
Learning Objectives:
In this session, students will:
- Understand that sounds are produced by vibrations, starting with their own vocal cords.
- Relate vibrations to waves and understand the concept of sound waves through live plots.
- Learn how tension affects sound, pitch, and frequency by experimenting with string instruments.
- Observe how MeasureLab captures sound vibrations and plots them in real time.
- Develop an intuitive understanding of pitch, frequency, and intensity using sound plots.
Teacher Resource:
Session File: ML43.plf (57.5 KB)
Teaching Aids:
- Projector (optional, for displaying sound wave live plots)
Preparation:
This step has to be done before the session on each workstation/apparatus by the teacher/session instructor:
- Make sure that each computer has Physlogger installed and can detect the Measrelab when connected to it using the provided cable.
- Each Measurelab should have access to a power outlet for sensors that require external power. For this session, Sound Sensor will be used which requires an external power source.
- Launch the Physlogger application and load the session file provided in the resources section.

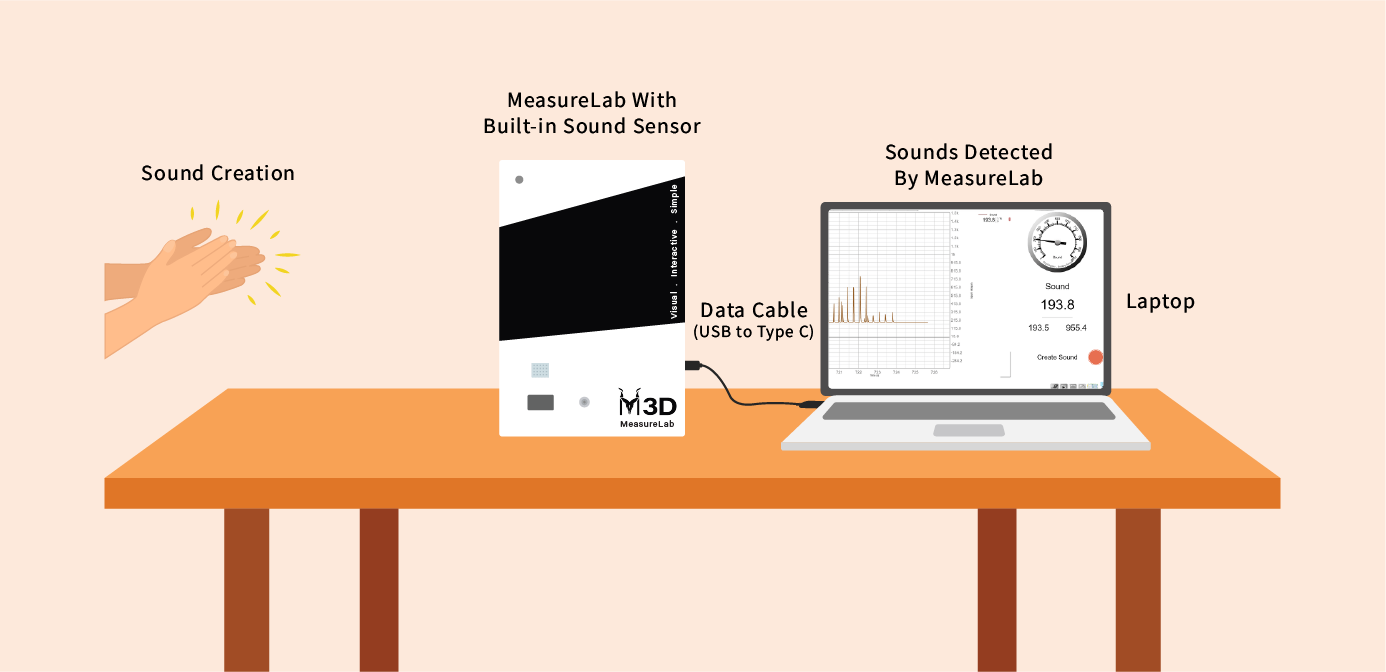

Your setup will look something like this:
Introduction: (10-15 minutes)
- Feel the Vibration!
Start by making the concept of vibrations relatable and fun:
The teacher may ask:
“Place your hand gently on your throat and make a humming sound. Can you feel something moving?”
Wait for responses like: “It feels like buzzing!”
Build on their observations:
“That’s your vocal cords vibrating! Whenever we make sounds, we vibrate something—just like your vocal cords are vibrating now. Every sound is made when something vibrates.”
- Show Sound Vibration with a Visible Example
Use the woofer provided in the MeasureLab kit to demonstrate sound vibrations clearly:
The teacher may say:
“Watch closely as the woofer vibrates when it produces sound.”
Turn on the woofer and play a sound at a low frequency, allowing the students to see the woofer’s surface moving visibly.
You may ask:

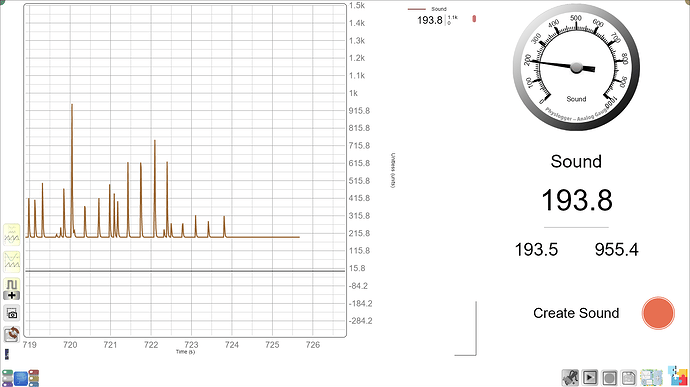

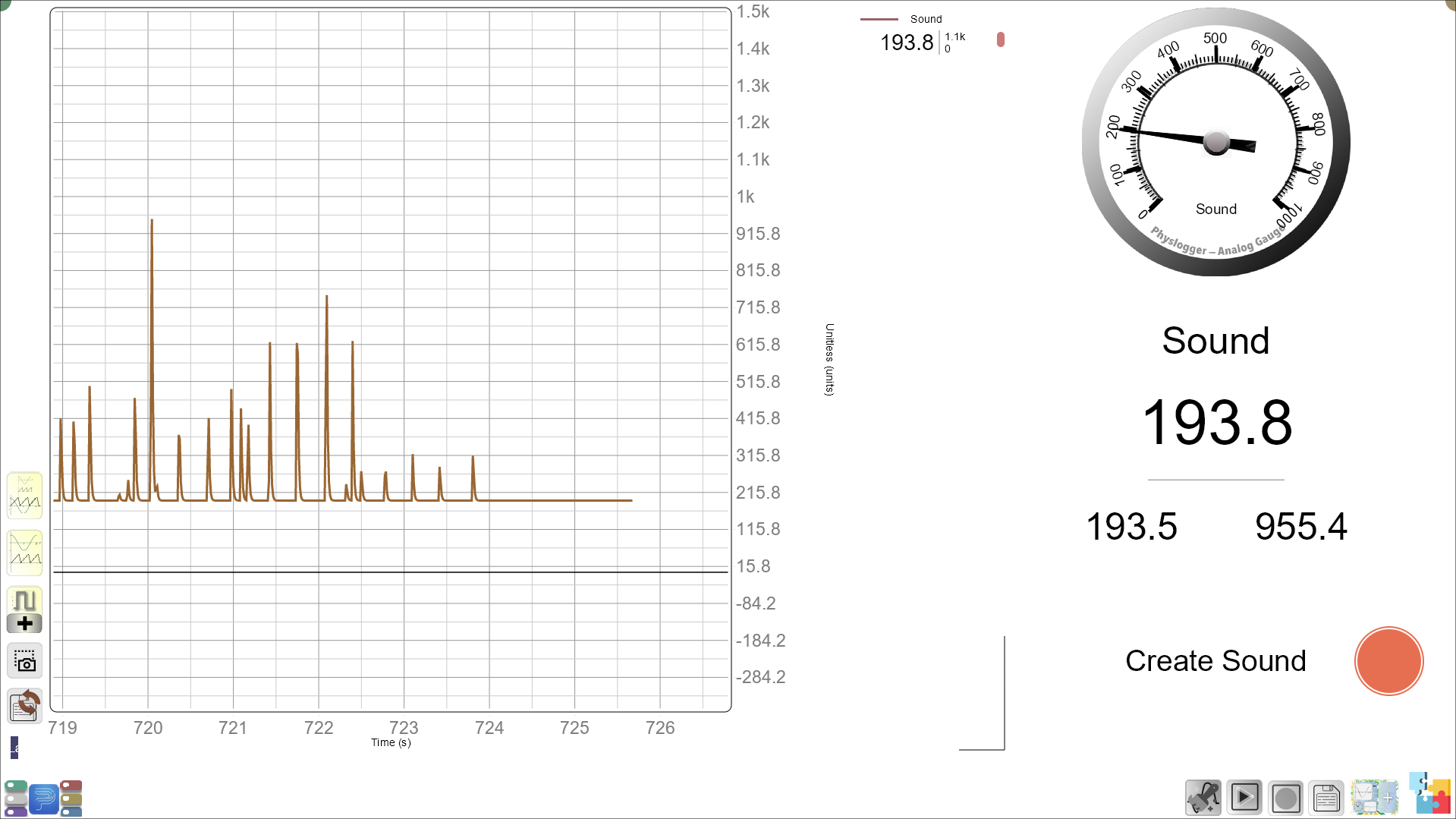

“Can you see the waves on the screen? These are sound waves created by the vibrations of the woofer.”
This visible movement helps students connect the vibrations they see to the sound waves detected by MeasureLab.
- Relating Vibration to Waves
Reinforce the relationship between vibrations and waves:
“The faster something vibrates, the more waves we see on the screen.”
This can segue into the next part of the session on pitch and tension.
Hands-On Exploration: (25-30 minutes)
- Do All Sounds Sound the Same?
Ask the students:
“Do all sounds sound the same? What makes one sound different from another?”
Allow them to respond. Then guide them:
“Some sounds are loud, and some are soft. Some sounds have a high pitch, like screeching tires or chalk on a board. Others have a low pitch, like the deep sound of a drum.”
The teacher can make a fun heavy sound to engage students.
- Introducing Tension with the a String
Fasten a string at two ends and explain:
“When I pluck this string, it vibrates and makes a sound. But what happens if I pluck a tighter string?”
The teacher may say:
“Tension is how tightly a string is pulled. The tighter the string, the higher the sound it makes.”
Demonstrate by changing the tension of the string and plucking strings of different tension and showing the sound waves on the live plot.
- Real-Life Examples of Tension
After showing the different sounds, relate tension to real-world examples:
“Think of a rubber band—if you stretch it really tight, it makes a higher sound. If it’s loose, it makes a lower sound. That’s because tension changes how fast the string vibrates.”
- Students Experiment with Tension
Now, give the students time to experiment with the string instrument in small groups.
Each group will change the tension of the string and use the sound sensor to see how the live plot changes.
Ask guiding questions:
“What do you notice about the sound when the string is tighter? How does the live plot change?”
- Connecting Pitch and Frequency
As students experiment, the teacher may explain:
“When the string vibrates quickly, we say it has a higher frequency, and that makes the sound higher in pitch. When it vibrates slowly, it has a lower frequency and makes a lower sound.”
Show this on the live plot:
“Look at the waves on the screen—the closer together they are, the higher the frequency and pitch.”
Guided Activity: (15-20 minutes)
Worksheet Layout:
- Prediction Section:
Before plucking the string students will write down predictions:
“What will happen to the sound when the string is tighter? Will it make a higher or lower sound?”
-
Observation Table:
- Students will fill in a table while experimenting with the string:
Instrument Action (Tighten, Loosen) Sound (High/Low) Observed Frequency (Hz) Observed Intensity (dB) Rubber Band/Tied String -
Comparing Plots Section:
- Students will compare two live plots displayed on MeasureLab and identify which one had a higher frequency and which had a lower frequency.
- Follow-up question:
“What do you think made the higher pitch? Why?”
-
Reflection Section:
- Ask students to reflect on their findings:
“What did you learn about how vibrations create sound? How does tension change the pitch of a sound?”- “Can you think of other examples where vibrations change the sound of something?”
- Ask students to reflect on their findings:
Summary and Reflection: (5-10 minutes)
Summarize the key concepts:
“Today, we learned that sound comes from vibrations. We saw how the woofer vibrates to produce sound waves, and we observed these waves on our live plots. We also discovered that the tighter a string is, the higher the sound it makes, and we explored how frequency relates to pitch. By experimenting with different tensions, we saw how MeasureLab can help us understand the science behind sound.”
You may ask students to reflect:
- “What other things around you make sound through vibrations?”
- “How can we use what we learned today to understand how different instruments make different sounds?”
Glossary:
- Vibrations: Movements that cause sound by shaking quickly.
- Tension: How tight or loose something is pulled.
- Frequency: How fast something vibrates, which affects the pitch of the sound.
- Pitch: How high or low a sound is, depending on the frequency.
- Sound Waves: Waves created by vibrations that travel through the air and make sound.
