Grade 7 - Session 1: “Advanced Speed and Acceleration Analysis”
Architect: Aleeza Ayaz - Markhor3D
Session Length: 50-60 minutes
Session Overview:
In this session, students will explore the fundamentals of motion by measuring the speed and acceleration of a cart moving down an inclined plane using photogate sensors and MeasureLab. They will investigate how changes in the ramp’s angle and the cart’s mass affect acceleration, applying Newton’s laws of motion to understand the relationship between force, mass, and acceleration. Students will identify variables, analyze graphs to observe trends, and calculate the force acting on the cart using mass and acceleration data. This hands-on session provides an engaging way to connect theoretical physics concepts to practical experimentation.
Learning Objectives:
In this session, students will:
- Measure the speed and acceleration of a cart moving down an inclined plane using photogate sensors connected to MeasureLab.
- Explore how changing the angle of the ramp and the mass of the cart affects acceleration.
- Understand and apply Newton’s laws of motion to the experiment, focusing on the relationship between force, mass, and acceleration.
- Identify independent, dependent, and controlled variables in the experiment.
- Draw and analyze graphs to observe relationships between acceleration, mass, and angle of inclination.
- Calculate the force acting on the cart using mass and acceleration data.
Teacher Resource:
Session File: ML71.plf (61.9 KB)
Equipment Required:
- PC/Laptop to display measurement and live plot
- MeasureLab with built-in load cell.
- Photogates attached to MeasureLab.
- Inclined plane or ramp (with adjustable angles).
- Protractor (to measure angles of inclination).
- Worksheet for recording time, speed, and acceleration data.
- Pens, pencils, markers, etc.
Teaching Aids:
- Projector to display live data from MeasureLab’s photogate sensors (optional).
- Diagrams or visual aids for introducing speed, acceleration, friction, and Newton’s Laws.
Preparation:
This step has to be done before the session on each workstation/apparatus by the teacher/session instructor:
- Make sure that each computer has Physlogger installed and can detect the Measrelab when connected to it using the provided cable.
- Each Measurelab should have access to a power outlet for sensors that require external power. For this session, Load cell and Photogate will be used which requires an external power source. The load cell is built-in and the photogates will be connected in the following ports:

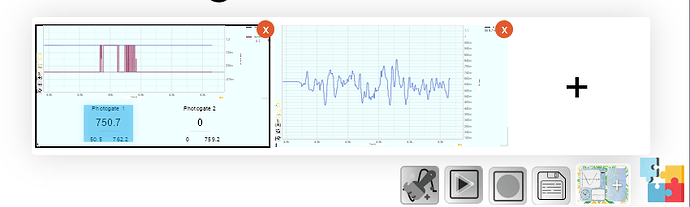

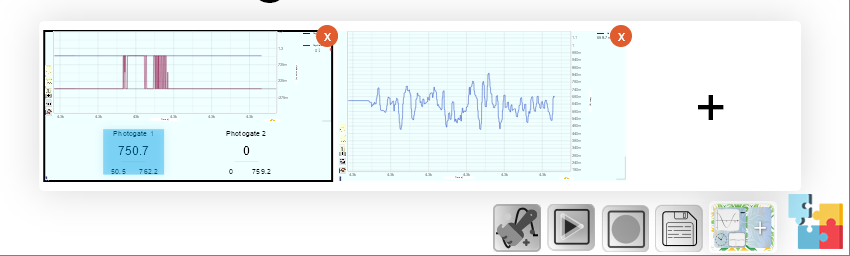

- This session uses multiple workspaces so make sure that you and the students are familiar with switching workspaces:
- Launch the Physlogger application and load the session file provided in the resources section.

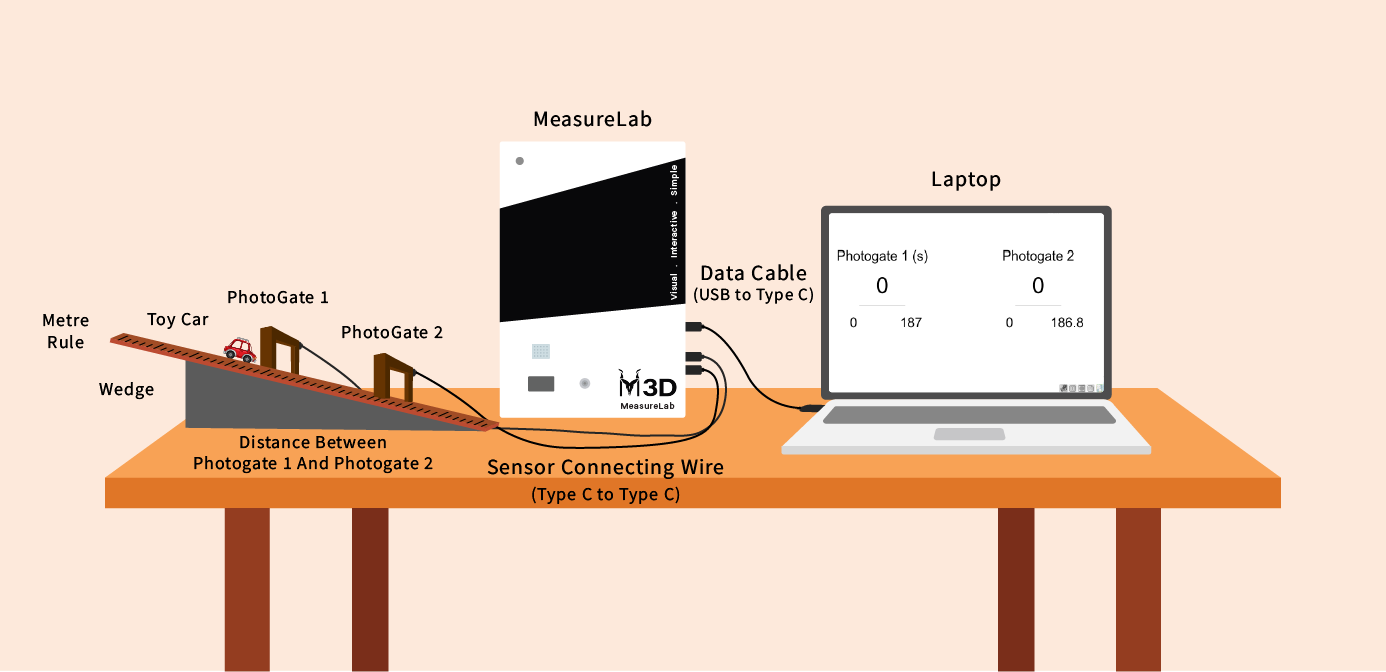

Your setup will look something like this:
Introduction and Hands-On Exploration: (50-55 minutes)
Engaging Students with Speed and Acceleration:
- You may start by showing a visual aid of a person losing control of a bike while going downhill, may use examples from movies:
“Do you notice that the longer the person goes, the faster they get? What do you think is happening as they move down the hill?”
- Let students share their thoughts. Guide them toward understanding that when moving downhill, their speed increases as they travel further.
- You may build on this by saying:
“This increase in speed is what we call acceleration. Today, we’re going to measure how fast a cart moves down a ramp and see how its speed changes, or accelerates, as it moves. We’ll also explore how different factors—like the angle of the ramp or the mass of the cart—affect acceleration.”
Step 1: Measuring Speed and Acceleration
- Setting up the Experiment:
- The photogate sensors will measure the time it takes for the cart to travel between two points.
- Use a protractor to adjust the angle of the ramp.
- You may ask:
“What do you think will happen to the cart’s speed as it moves down the ramp? Will it move faster, slower, or stay the same?”
- Let students make predictions and write them down in their worksheets.
- Calculating Speed:
- You may explain:
“Speed is how far something moves in a certain amount of time. We can calculate it using this formula:
Speed = Change in distance/ Change in time

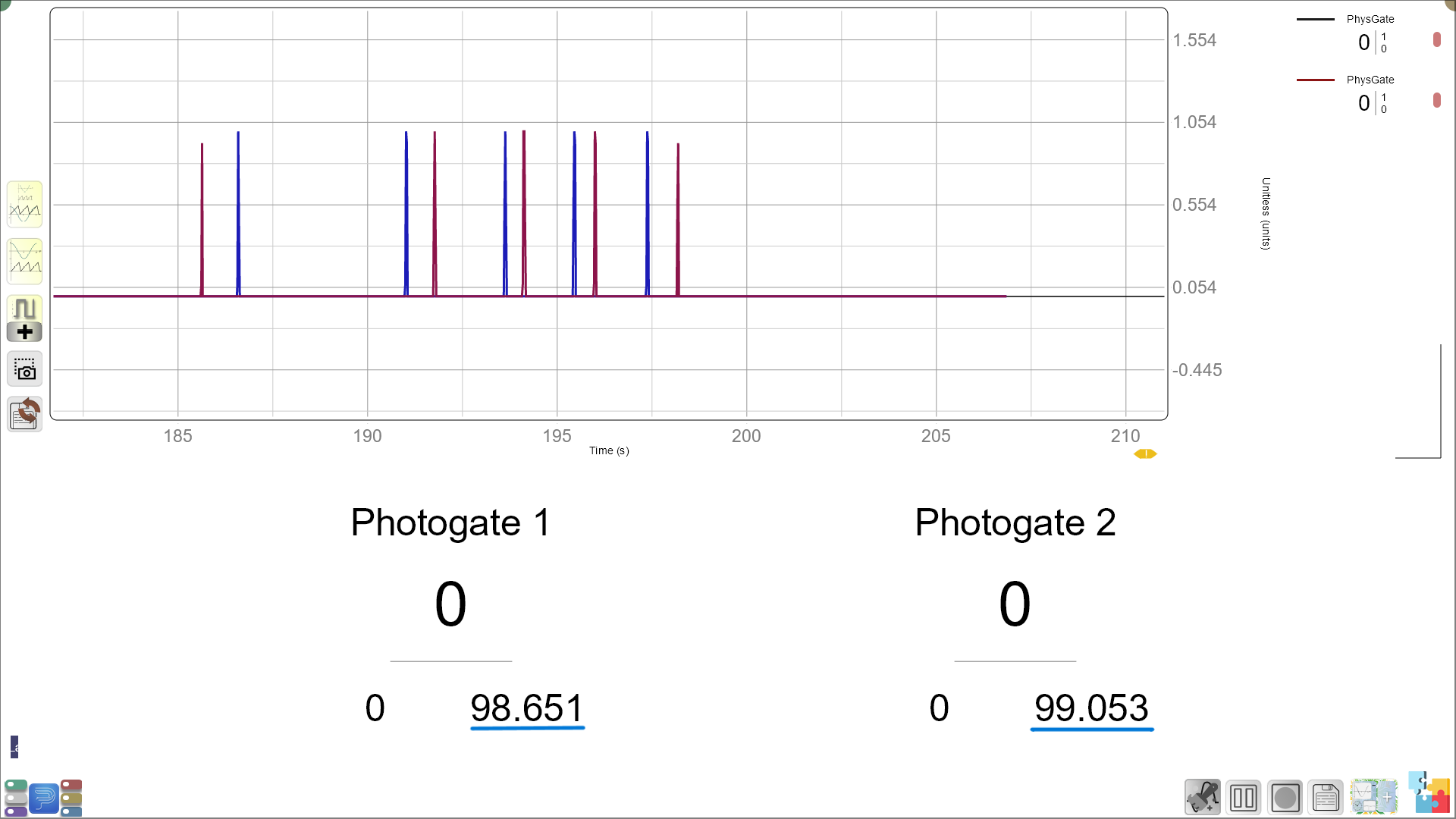

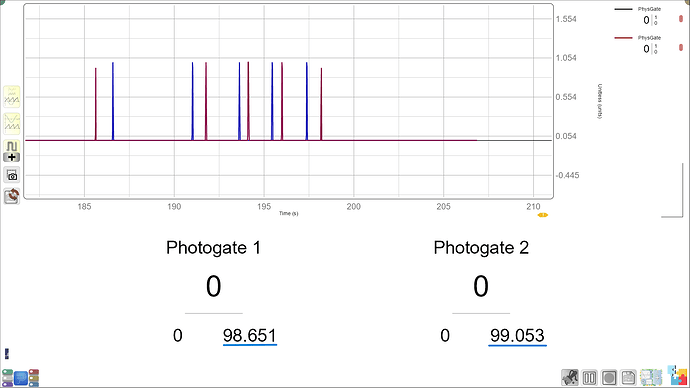

- You may guide students to set the cart at the top of the ramp, right before the first photogate. Once the cart passes the photogate, the timer will start, and it will stop when the cart passes the second photogate. The time of each photogate will be shown in the graph in the form of a pulse as well as below the graph.
- Recording Data:
Students will record time and calculate speed using the distance between the photogates.
Worksheet Table:
| Angle of Inclination | Time Between Photogates (s) | Distance (m) | Speed (m/s) |
|---|---|---|---|
| 10° | |||
| 20° | |||
| 30° |
Step 2: Introducing Acceleration
-
Introducing the Concept of Acceleration:
- You may ask:
“Now that we’ve measured speed, what do you think will happen if we tilt the ramp even more? Will the speed change, or will it stay the same?”
- Let students predict how increasing the angle of the ramp affects speed.
- You may explain:
“Acceleration is the rate at which speed changes. If the cart speeds up as it moves down the ramp, it’s accelerating. The formula for acceleration is:
Acceleration = Change in speed/Change in time
- Guide students through the process of calculating acceleration using their speed data considering that the initial speed of the cart is zero since it was at rest and the final speed is the one we calculated.
Step 3: Connecting Newton’s Laws to Speed and Acceleration
Now that students have observed speed and acceleration, you can seamlessly transition into discussing Newton’s laws:
- You may ask:
“We’ve seen how the cart’s speed changes when it moves down the ramp. But what’s making the cart move faster? What force do you think is acting on the cart?”
-
Let students share their ideas, guiding them toward gravity as the force.
-
You may explain:
“That’s right! Gravity pulls objects downward, and this causes them to speed up as they fall or roll downhill. This is where Newton’s laws of motion come in. Newton’s second law tells us how force, mass, and acceleration are related:
Force = Mass x Acceleration
- We’ve already measured acceleration. Now let’s use the load cell to measure the cart’s mass and calculate how much force is acting on it.”
Step 4: Calculating Force with the Load Cell

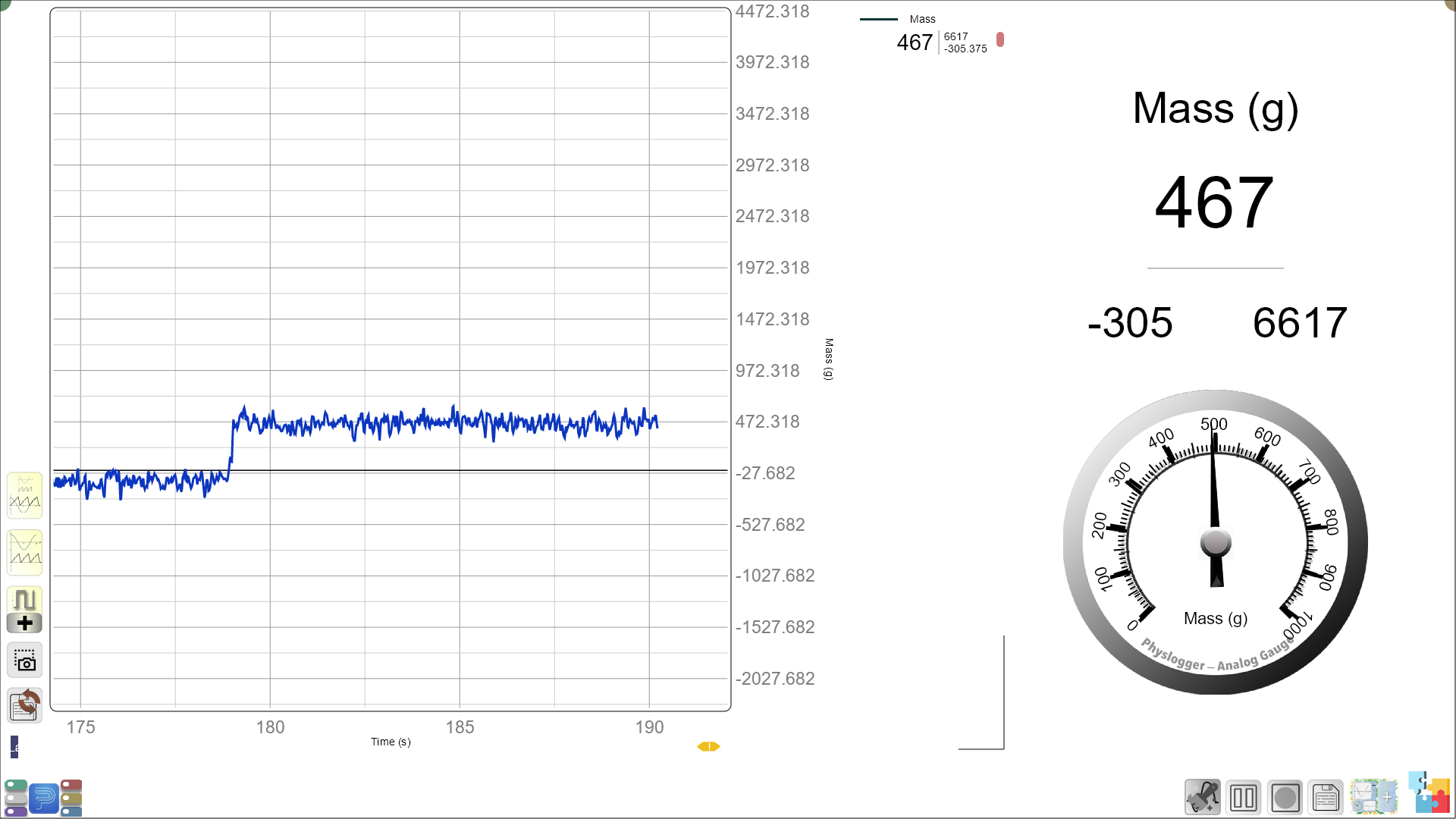

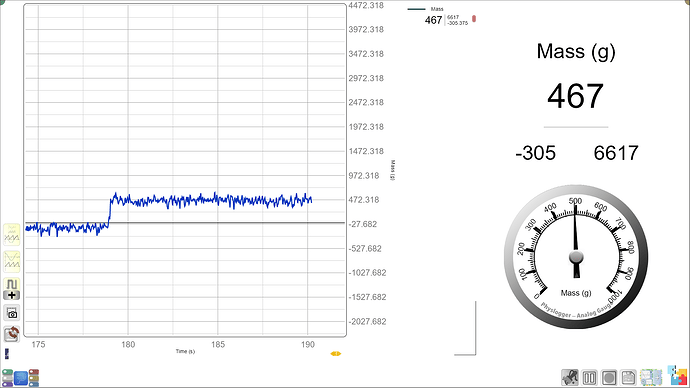

- Measuring Mass Using the Load Cell:
- Use the load cell to measure the mass of the cart before each trial.
- Record the mass on the worksheet.
-
Calculating Force:
- After calculating the cart’s acceleration, students will use the formula F = ma to calculate the force acting on the cart.
Worksheet Table for Force:
Angle of Inclination Mass of Cart (kg, 1kg = 1000g) Acceleration (m/s²) Force (N) = m × a 10° 20° 30°
Step 5: Reflection and Data Analysis
-
Graphing the Results:
- Guide students to create graphs showing the relationship between acceleration and the angle of inclination, and between force and angle of inclination.
-
Follow-Up Questions:
- “What did you observe as we increased the angle of the ramp? How did the acceleration change?”
- “How did the mass of the cart affect the force? What trends do you notice on your graph?”
Summary and Wrap-Up: (5-10 minutes)
- You may summarize:
“Today, we measured the speed and acceleration of a cart as it moved down a ramp. We saw that the steeper the ramp, the faster the cart went. By measuring the mass with the load cell, we calculated the force acting on the cart and applied Newton’s second law to see how force, mass, and acceleration are connected.”
- You may end with a real-life connection:

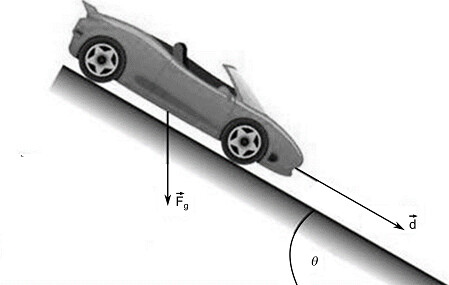

“When cars go downhill, gravity pulls them down just like it did with the cart. Understanding speed, acceleration, and force helps engineers design safe roads and vehicles.”
Glossary:
- Speed: How fast an object moves (distance traveled over time).
- Acceleration: The rate at which speed changes.
- Newton’s Second Law: Force equals mass times acceleration (F = ma).
- Force: A push or pull acting on an object.
- Load Cell: A device used to measure the mass of an object.
